The machine removes water by a vacuum method, it ensures that the package is full on the removal of water.
[Features]
・Labor saving
・Ensure easy and accurate filing and packing
・Hyginic
[Capacity]
1,000 kg/hour
Model Number | NSK-800 |
---|---|
Total length | 2,600mm |
Total width | 820mm |
Total height | 1,550mm |
Weight | 500kg |
Power Supply | 200V 7kw |
Water Consumption | 40ℓ/min |
Air Consumption | -- |
Steam Supply | -- |
Capacity | 1t /hour |
Work Size | -- |
Product Name | Cyclone Unit |
---|---|
Total length | 1,360mm |
Total width | 970mm |
Total height | 1,206mm |
Weight | -- |
Power Supply | -- |
Water Consumption | -- |
Air Consumption | -- |
Steam Supply | -- |
Capacity | -- |
Work Size | -- |

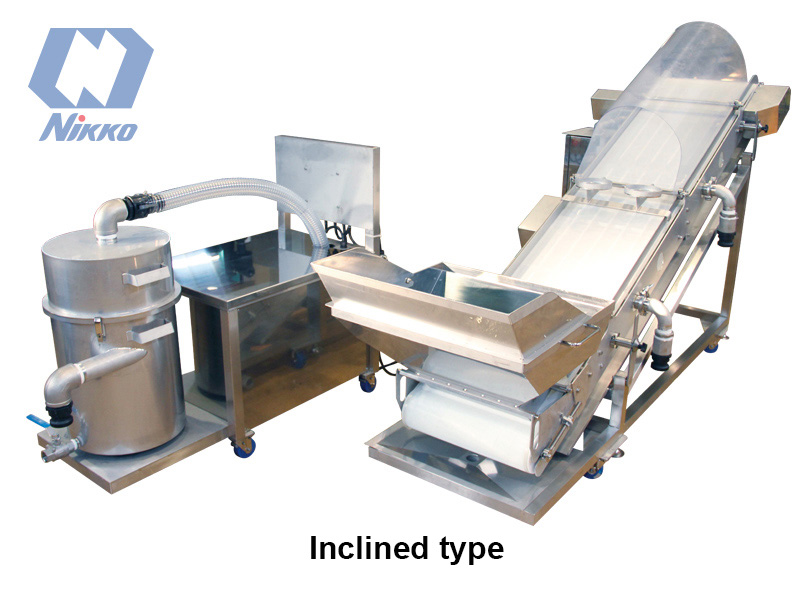

Product Name | Ikura Drain Conveyor (Inclined Type) |
---|---|
Total length | 2,511mm |
Total width | 893mm |
Total height | 1,468mm |
Weight | 330kg |
Power Supply | 200V 2.5kw |
Water Consumption | 30ℓ/min |
Air Consumption | -- |
Steam Supply | -- |
Capacity | 1t /hour |
Work Size | -- |
Product Name | Cyclone Unit |
---|---|
Total length | 1,483mm |
Total width | 540mm |
Total height | 1,000mm |
Weight | -- |
Power Supply | -- |
Water Consumption | -- |
Air Consumption | -- |
Steam Supply | -- |
Capacity | - |
Work Size | -- |
