【Salmon Processing・Seafood Processing】 Injector

  • salmon
  • fishery
  • seasoning

Brine and liquid seasoning injection machine

This machine can inject salt water and/or seasoning liquid into the fish.

[Features]
・Improve taste
・Uniform distribution of brine consistency
・Labor saving
・Increase yield
・Enable to change salinity freely on your request
・Enable to develop new product with unique seasoning

[Capacity] *case of salmon
24 fillets/min NSI-240

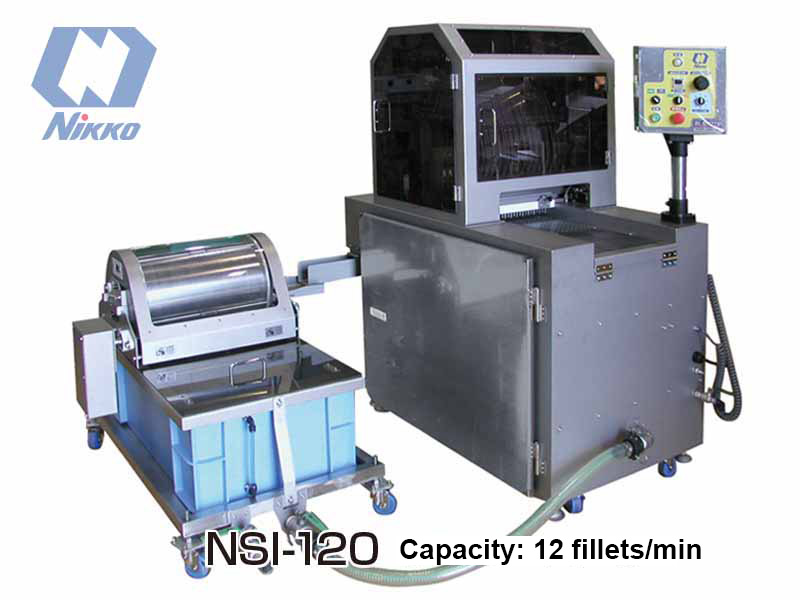

12 fillets/min NSI-120

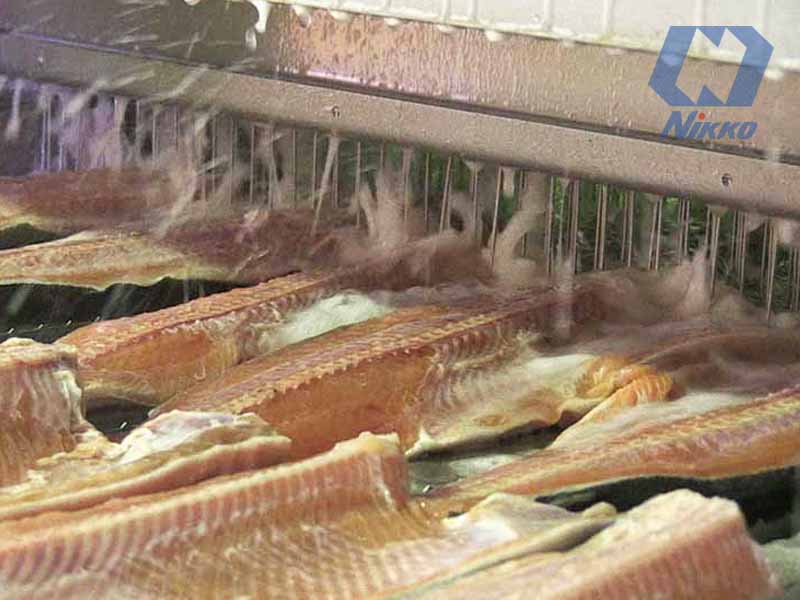

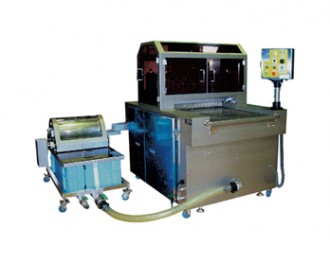

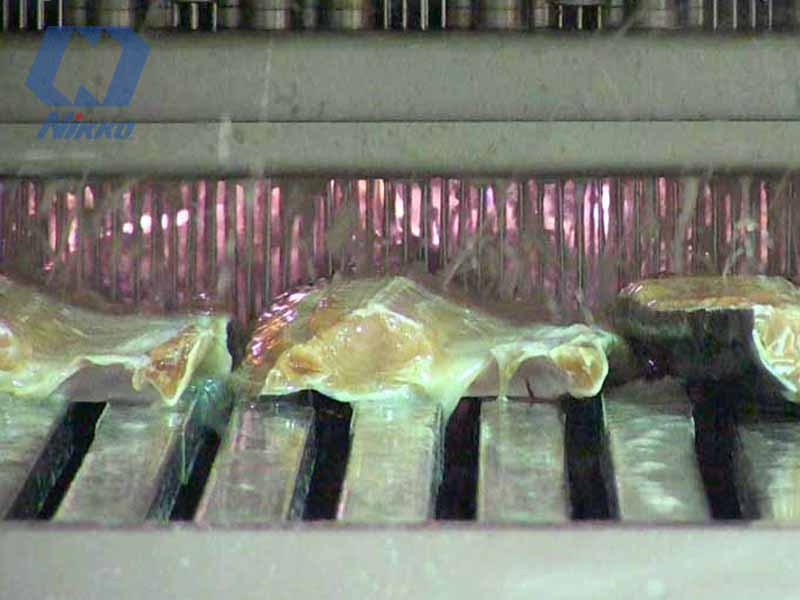

InjectorPhoto Gallery

Click here for larger image

  • Injector_1
  • Injector_2
  • Injector_3

Specification

Model Number NSI-240
Total length 1,942mm
Total width 1,187mm
Total height 1,645mm
Weight 800kg
Power Supply 200V 5kw
Water Consumption --
Air Consumption 50Nℓ/min
Steam Supply --
Capacity 24 fillets/min
Work Size Max Height of Fillet: 50mm
Number of Injector Needles 400
Needle pitch approx 7.5mm
Needle Size 1.6mm
Pitch Feeding 60mm
Number of Fillet Row 4

Product Name Tank Screen Unit
Total length 1,050mm
Total width 700mm
Total height 879mm
Weight 125kg
Power Supply --
Water Consumption --
Air Consumption --
Steam Supply --
Capacity --
Work Size --

Video
