【Salmon Processing・Seafood Processing】 Grading and Weighing System

  • salmon
  • fishery
  • measuring
  • sorting

Products for size grading and combination weighing

While the machine automatically sorts fish, the staff simply packs the sorted fish into the cartons.

[Features]
・Labor and time saving
・Increase yield (5% to 13% up)
・Easy operation
・Installed anti-deviation grading function

[Capacity]
50 fish/min (500 cartons/hour)


Salmon/Trout (Round, Dress and Fillet) and Atka mackerel

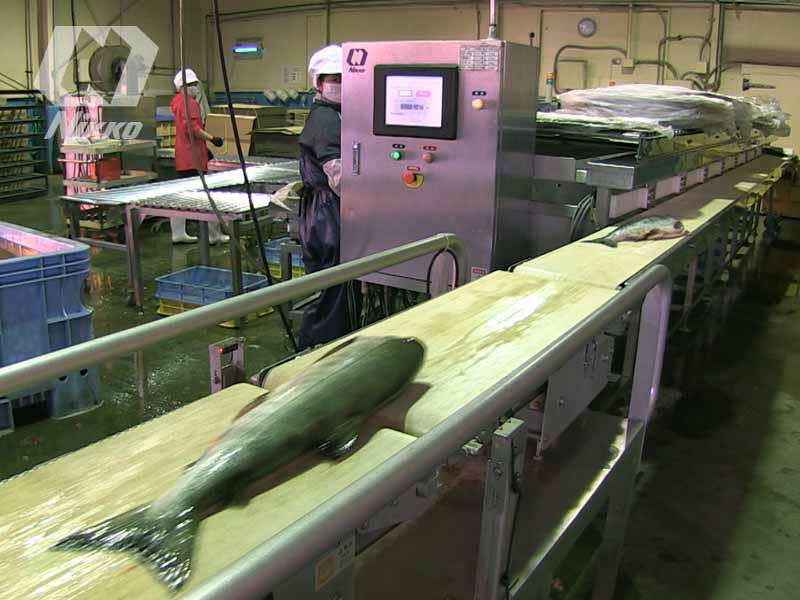

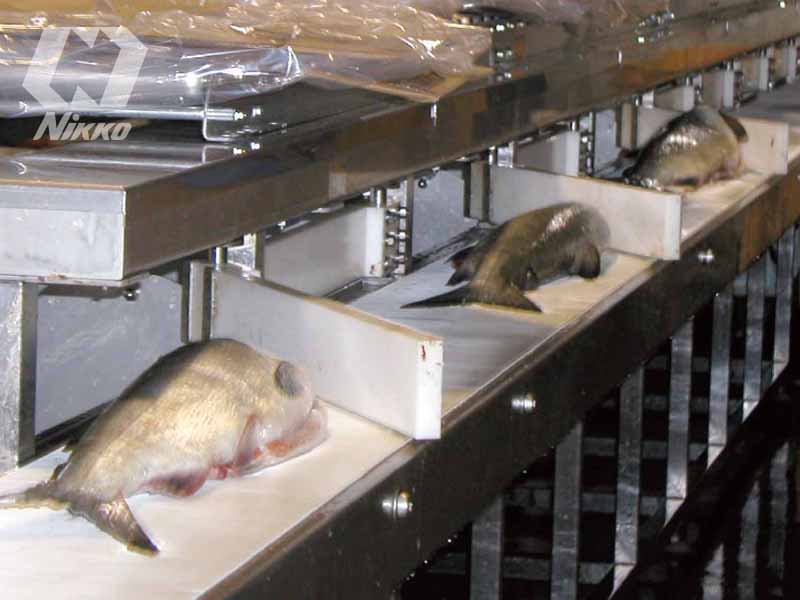

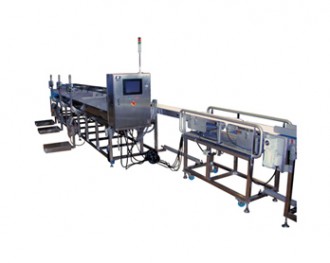

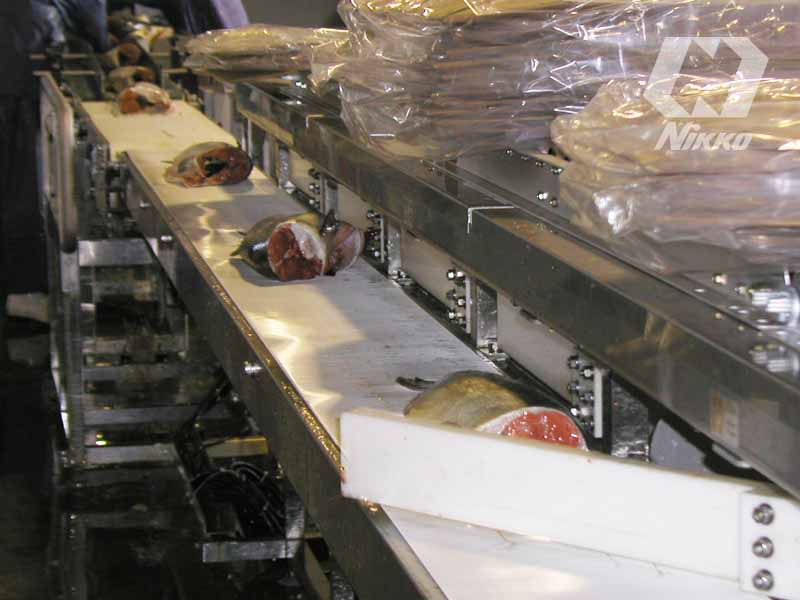

Grading and Weighing SystemPhoto Gallery

Click here for larger image

  • Grading and Weighing System_1
  • Grading and Weighing System_2
  • Grading and Weighing System_3
  • Grading and Weighing System_4

Specification

Model Number NDG-2000
Total length 12,100mm
Total width 1,160mm
Total height 1,123mm
Weight 2,770kg
Power Supply 200V 3kw
Water Consumption --
Air Consumption 0.75kw
Steam Supply --
Capacity 50 fish/min(500 cartons/hour)
Work Size --
Size Sorting 9 ranks (from 0.5kg to 8kg by optional setting)
Accuracy Dressed fish±20g Semidressed fish±50g
Belt Speed 60m/min
