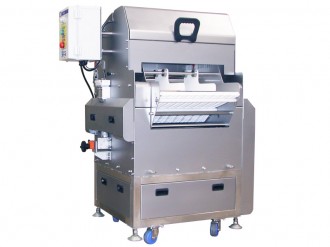

【Food Processing】 Water Absorbing machine “Suitool”

  • food-processing
  • waterremoving

Innovation for water removal for retort products.

The special sponge with improved water absorbency and water holding properties.
This method ensures a comfortable working environment without noisiness.

[Features]
・Utility: reduce running cost
・Work environment: noiseless
・Maintenance: toolless installation
・Quality control: reduce mold and smell
・Operation space: less occupied space

Water Absorbing machine “Suitool”Photo Gallery

Click here for larger image

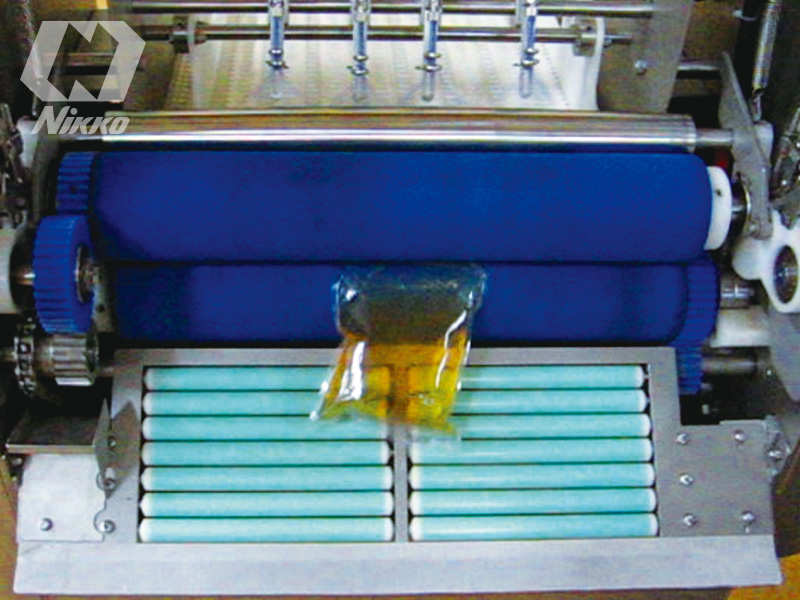

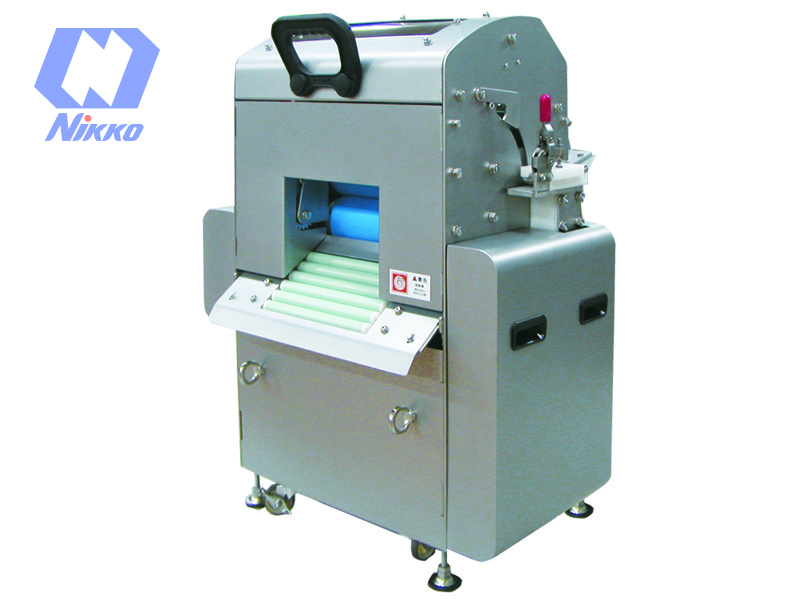

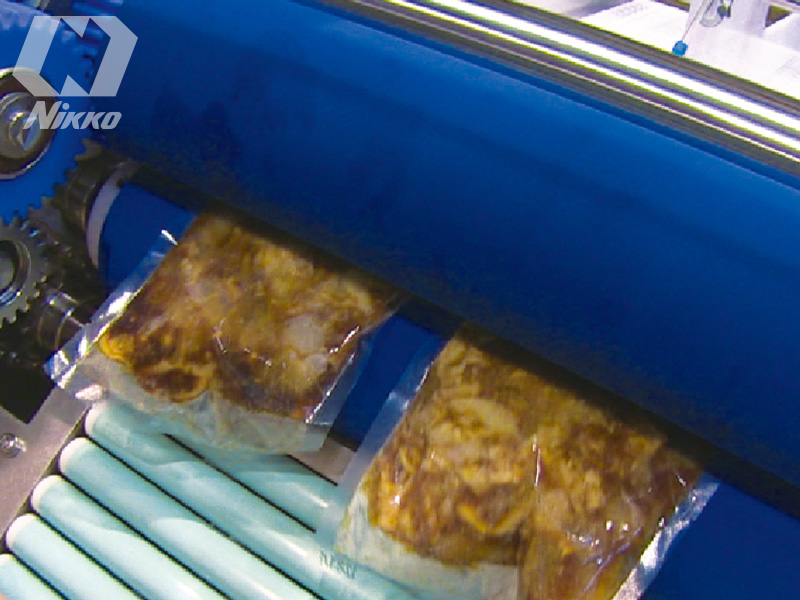

  • Suitool_1
  • Suitool_2
  • Suitool_3

Specification

Model Number SUIV2MINI-S200-NR-ST90
Total length 560mm
Total width 682mm
Total height 828mm
Weight 100kg
Power Supply 200V 0.06kw
Water Consumption --
Air Consumption --
Steam Supply --
Capacity Depending upon works
Work Size --
Effective width 200mm
Diameter (sponge) 90mm
-- *Air Blower Unit is uninstallable

Model Number SUI2-S450-NR-ST90
Total length 749mm
Total width 1,024mm
Total height 1,272mm
Weight 220kg
Power Supply 200V 0.1kw
Water Consumption --
Air Consumption 400ℓ/min(with Air Blower Unit) Compressor needs 5.5kw
Steam Supply --
Capacity Depending upon works
Work Size --
Effective width 450mm
Diameter (sponge) 90mm
Conveyor Speed Max12m/min
-- *Speed is adjustable
-- *Air Blower Unit is optional

Model Number SUIV2-D450-NR-ST90
Total length 857mm
Total width 1,020mm
Total height 1,266mm
Weight 260kg
Power Supply 200V 0.2kw
Water Consumption --
Air Consumption 400ℓ/min(with Air Blower Unit) Compressor needs 5.5kw
Steam Supply --
Capacity Depending upon works
Work Size --
Effective width 450mm
Diameter (sponge) 90mm
Conveyor Speed Max12m/min
-- *Speed is adjustable
-- *Air Blower Unit is optional
